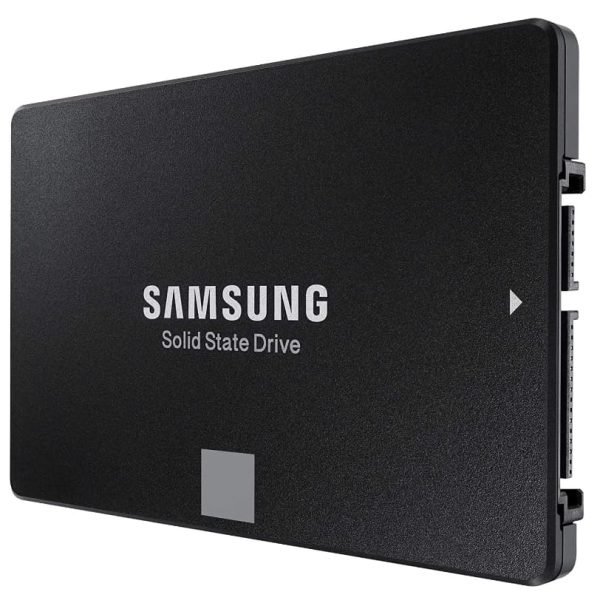

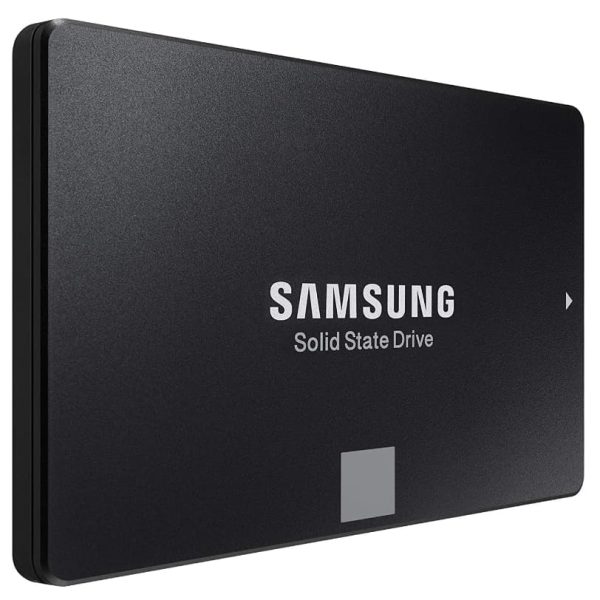

Samsung 860 EVO 500GB SATA 2.5″ Internal SSD (MZ-76E500/AM)


The SSD 860 EVO is a high-performance solid-state drive designed for use in client PCs. With a SATA 6 Gb/s interface (compatible with SATA 3 Gb/s and SATA 1.5 Gb/s), it offers a substantial 500 GB storage capacity, although actual usable space may vary due to formatting and other factors. Notable features include impressive sequential read speeds of up to 550 MB/s and sequential write speeds of up to 520 MB/s. It also excels in random read and write speeds, supporting up to 98,000 IOPS and 90,000 IOPS, respectively. Equipped with a Samsung MJX Controller and V-NAND 3bit MLC NAND Flash, it ensures reliable and speedy performance. Additional features such as cache memory, Trim support, AES 256-bit encryption, and S.M.A.R.T. support enhance data security and drive management. Its environmental durability, including operating temperatures ranging from 0 to 70°C and shock resistance of up to 1,500G, make it a robust choice. This 2.5″ SATA III SSD has compact dimensions of 3.94″ x 2.76″ x 0.27″ and weighs just 0.19 lbs. To complete the package, it comes with the Magician Software for SSD management, providing comprehensive control over the drive. With an average power consumption of 2.2 W (4.0 W in Burst mode), the SSD 860 EVO is a reliable and high-performance storage solution, boasting a 1.5 Million Hours Reliability (MTBF).

Add to wishlist
    Type SSD 860 EVO
    Usage Application Client PCs
    Interface SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
    Capacity 500 GB (1 GB=1 Billion byte by IDEMA)
    * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise
    Key Features Sequential Read Speed
    Up to 550 MB/s Sequential Read * Performance may vary based on system hardware & configuration

    Sequential Write Speed
    Up to 520 MB/s Sequential Write * Performance may vary based on system hardware & configuration

    Random Read Speed
    Random Read (4KB, QD32): Up to 98,000 IOPS Random Read
    Random Read (4KB, QD1): Up to 10,000 IOPS Random Read * Performance may vary based on system hardware & configuration

    Random Write Speed
    Random Write (4KB, QD32): Up to 90,000 IOPS Random Write
    Random Write (4KB, QD1): Up to 42,000 IOPS Random Write * Performance may vary based on system hardware & configuration

    Samsung MJX Controller
    NAND Flash
    Samsung V-NAND 3bit MLC
    Cache Memory
    Samsung 512 MB Low Power DDR4 SDRAM
    Trim Support
    AES Encryption
    AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
    S.M.A.R.T. Support
    GC (Garbage Collection)
    Auto Garbage Collection Algorithm
    WWN Support
    World Wide Name supported
    Device Sleep Mode Support
    Internal Storage

    General Power Consumption (W)
    *Average: 2.2 W
    *Maximum: 4.0 W (Burst mode)
    * Actual power consumption may vary depending on system hardware & configuration
    Reliability (MTBF)
    1.5 Million Hours Reliability (MTBF)
    Environmental Specs Operating Temperature
    0 – 70 °C Operating Temperature
    1,500G & 0.5ms (Half sine)
    Form Factor 2.5″ SATA III
    Dimensions (W x H x D) 3.94″ X 2.76″ X 0.27″
    Weight 0.19 lbs.
    Software Magician Software for SSD management
    Weight 0.5 kg
    Dimensions 13 × 10 × 5 cm
